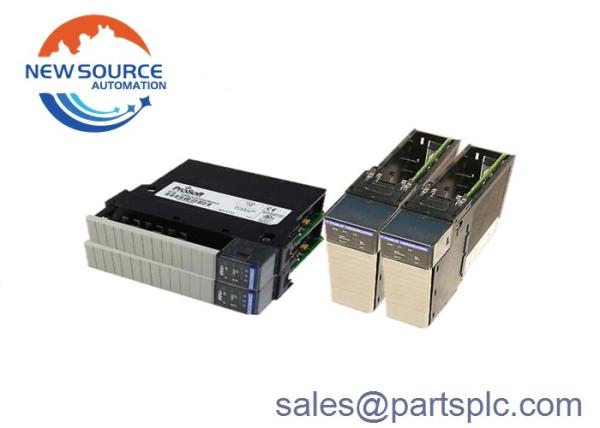

In Stock 100% Brand New and Original PROSOFT MVI56-PDPMV1
MVI56-PDPMV1 features One (1) RS485 port that is optically isolated, supporting PROFIBUS DP Version 1 protocol. Up to 125 PROFIBUS slave devices can be connected to this port which is also compatible with PPROFIBUS repeaters. This module has the capability of being configured up to 1536 cyclic bytes and 1536 bytes of output and supports extended diagnostic data.
Other functions supported by the MVI56-PDPMV1 include Alarm Handling, Synch and Freeze commands, Supports PROFIDrive version 3.1 parameter read and write operations, multicast and broadcast telegrams.
The MVI56-PDPMV1 has embedded LED status indicators for depicting the state of operation of the module. These LEDs indicators include Ready, Run, Error and Token indicators.
The MVI56-PDPMV1 PROFIBUS communication module is installed to a 1756 ControlLogix chassis. It occupies a single slot of the chassis and draws a current amounting to 800 mA @ 5VDC and 3 mA @ 24VDC from the backplane. It has an operating temperature of 0°C to 60°C (32°F to 140°F) and storage temperature of -40°C to 85°C (-40°F to 185°F). This module must be installed in an appropriate enclosure with vibration not exceeding 5 g from 10 Hz to 150 Hz and shock of 30 g with relative humidity of 5% to 95%, non-condensing.
The MVI56-PDPMV1 module is single slot module that fits within a 1756 backplane compatible. It is recognized as an input/output module when connected to a processor.
Also, the module shifts through the processor memory in order to transfer data between the processor and module. Generally, the module serves as a PROFIBUS network scanner, a data transfer mediator for PROFIBUS devices, and a processor data memory transfer over the backplane.
The environmental conditions for the MVI56-PDPMV1 module include an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), the storage temperature range is -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), 5G of vibration resistance from 10 to 150 Hertz, 30G of shock resistance (50G when not in operation) and 5 to 95% relative ambient humidity (non-condensing).
About Our Team
Our company is headquartered in Xiamen, Fujian, China, and directly cooperates with the original factory; has a professional sales team, its own engineer technical support, and good after-sales service; large inventory, original product quality, and fast delivery. These help us become a strong supporter of our customers, provide solutions for end-users, and ensure profits for resellers.
Best Quality Assurance
1. High quality
2. Prompt Delivery
3. We provide a large number of brand-name parts.
4. We have experienced staff and extensive test facilities.
5. There are many goods in stock.
6. We only provide the original new items, 100% make sure the best quality!
You may have any questions
Q: What are your packaging conditions?
A: Generally speaking, we pack the goods in cartons with foam padding to prevent damage to the goods.
Q: What are your payment terms?
A: 100% T/T before shipment. Western Union, credit cards are also acceptable
Q: What about your delivery time?
A: Generally 1-3 days after receiving your payment. The specific delivery time depends on the type and quantity of the order.
